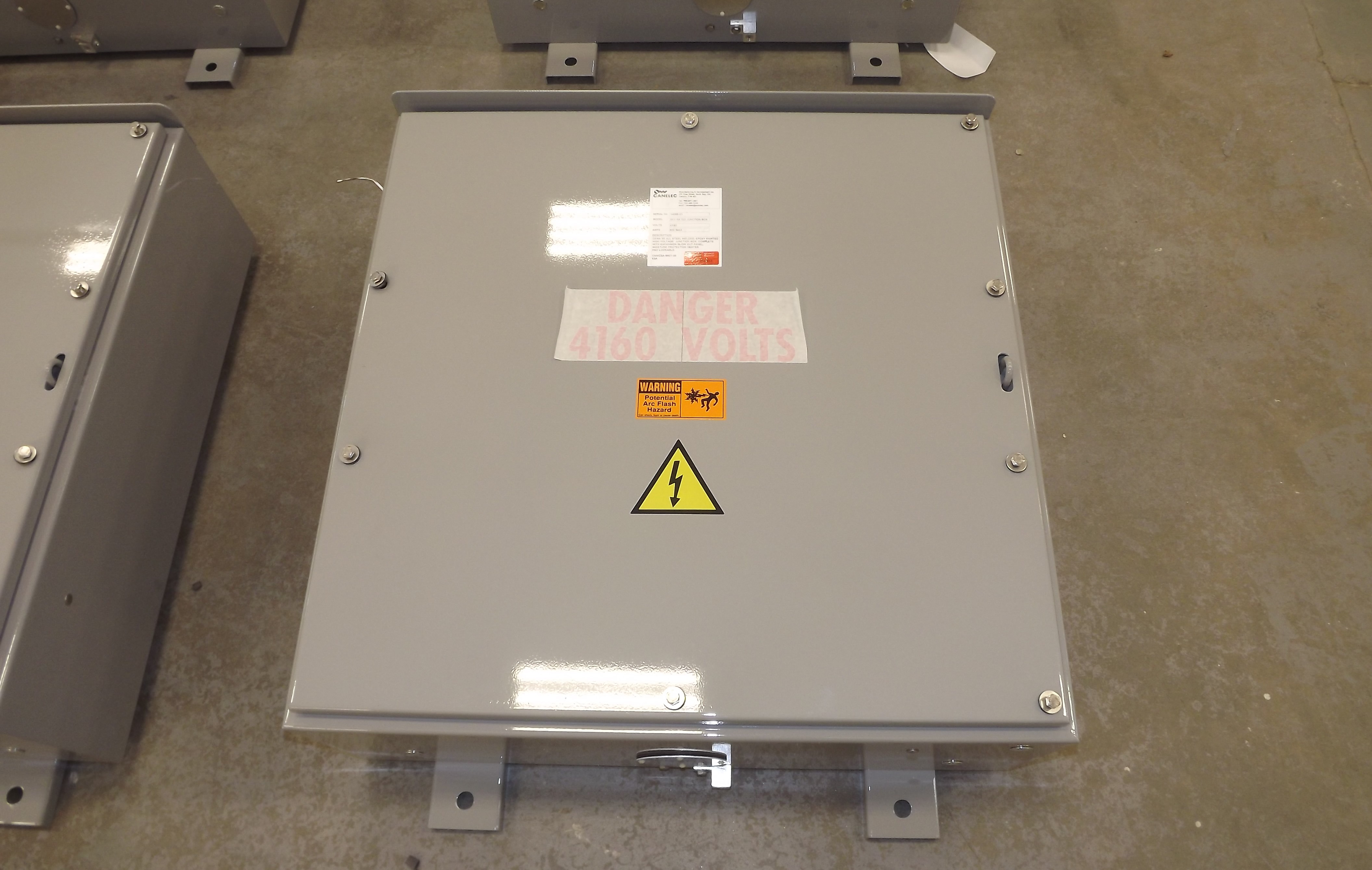

Junction Box

Voltage 5KV

Dimensions: 36”W x 36” H x 14” D

Ampacity: 600A or 800A Internal Bus

BIL: Min. 80KA

Features:

  • Stainless Hardware
  • Blow out Expansion Plate
  • Moisture Heater
  • ESA Approval

Options:

  • IR Viewing Windows

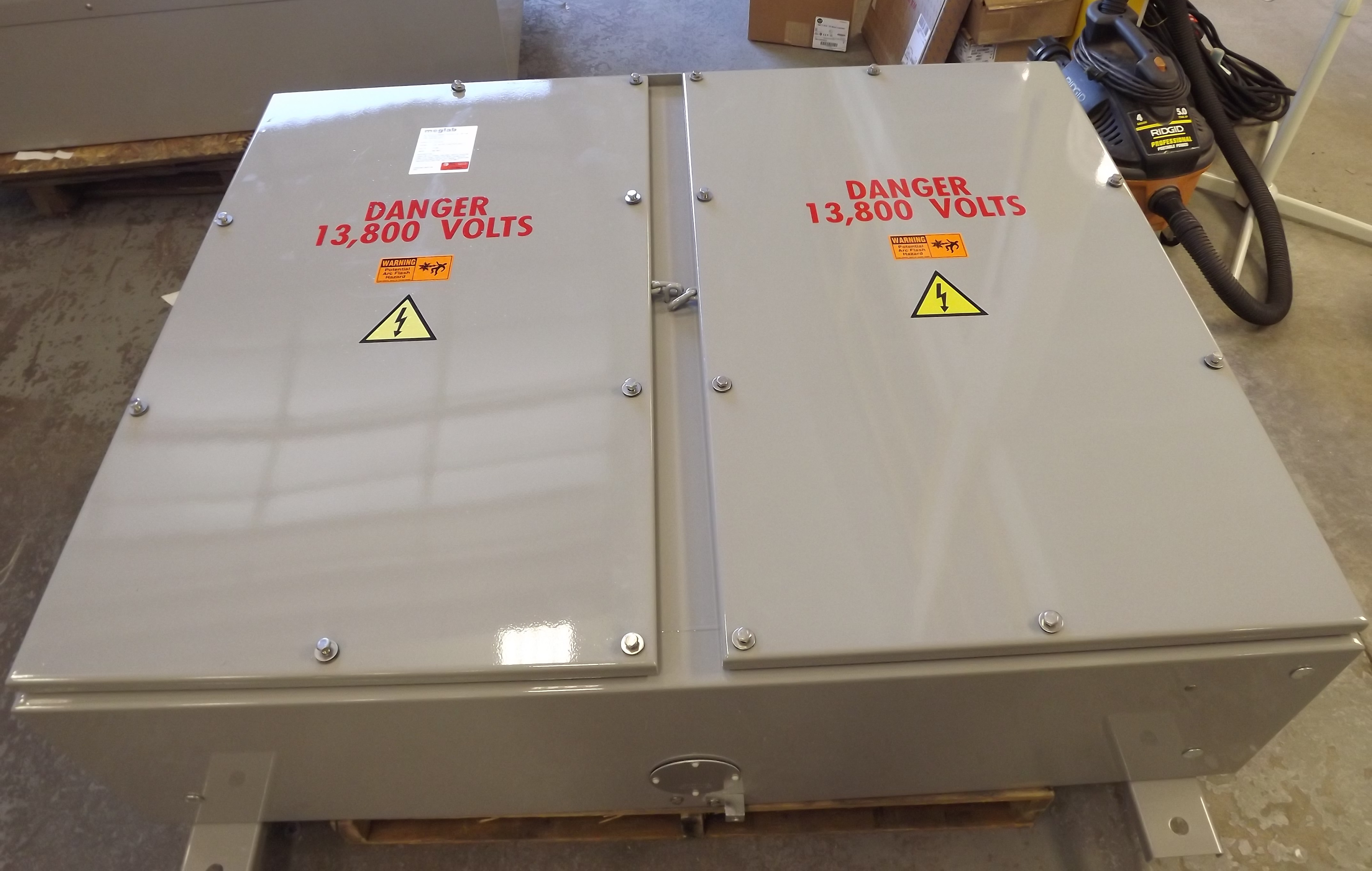

Junction Box

Voltage 15KV

Dimensions: 60” W x 48”H x 16” D

Ampacity: 600A – 800A Internal Bus

BIL: Min. 80KA

Features:

  • Stainless Hardware
  • Blow out Expansion Plate
  • Moisture Heater
  • Double Doors with Locking
  • ESA Approval

Options:

  • IR Windows

Load Break Switch

Single Gang - Voltage 5KV

Dimensions: 36”W x 70” H x 36” D

Ampacity: 600A Switch

BIL: 30 KA – 1 sec.

Features:

  • Fusing DIN 630A clips 45mm
  • Fusing 3” 400A clips
  • Adjustable from 292mm or 442 mm fuses
  • KIRK Key Interlock handle/door
  • Viewing Window
  • Viewing Window Magnetic Cover (ARC Flash)
  • Primary Bus in rear
  • Expandable bolt together for additional gangs
  • Epoxy paint finish
  • ESA Approval

Options:

  • IR Viewing windows for fuses
  • Rear Bus connections

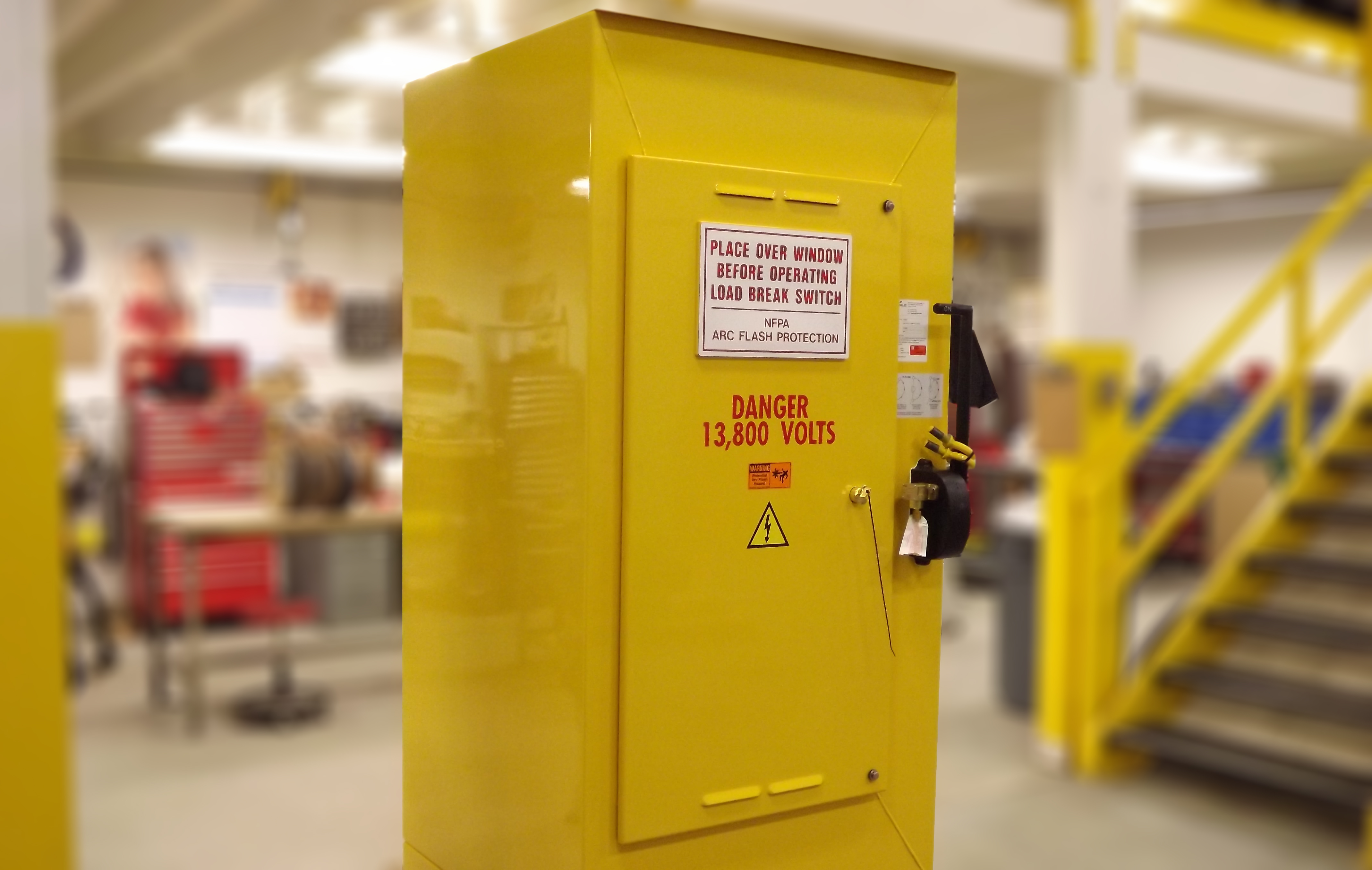

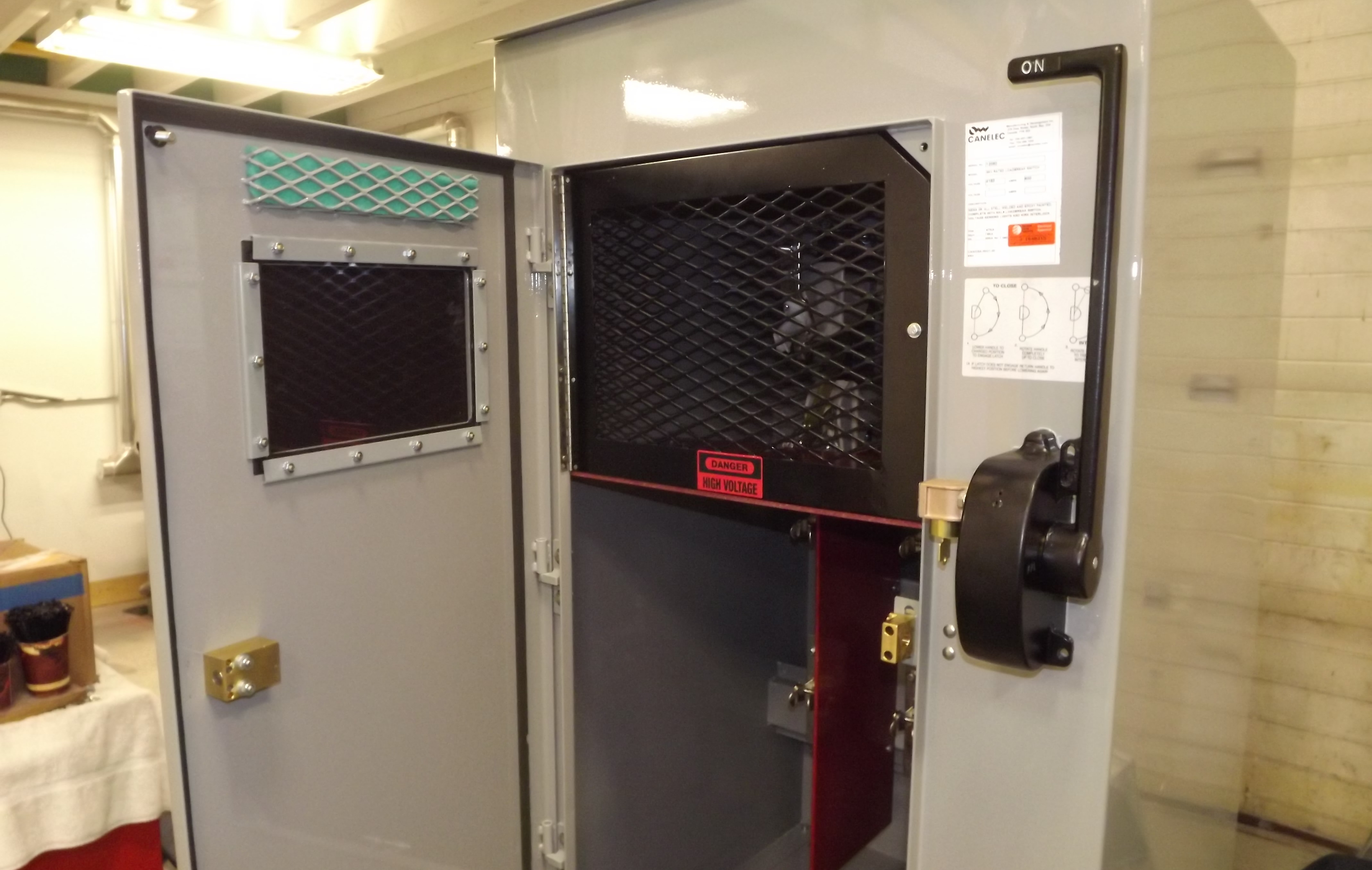

Load Break Switch

Single Gang Expandable - Voltage 15KV

Dimensions: 38” W x 76” H x 58” D

Ampacity: 600A Switch, 1200A Mains in rear.

BIL: 25 KA – 1 sec.

Features:

  • Fusing DIN 630A clips 45mm
  • Fusing 3” 400A clips
  • Adjustable from 292mm or 442 mm
  • KIRK Key Interlock handle/door
  • Viewing Window
  • Viewing Window Magnetic Cover (ARC Flash)
  • Primary Bus in rear
  • Expandable bolt together for additional gangs
  • Epoxy paint finish
  • ESA Approval

Options:

  • IR Viewing windows for fuses
  • Rear Bus connections

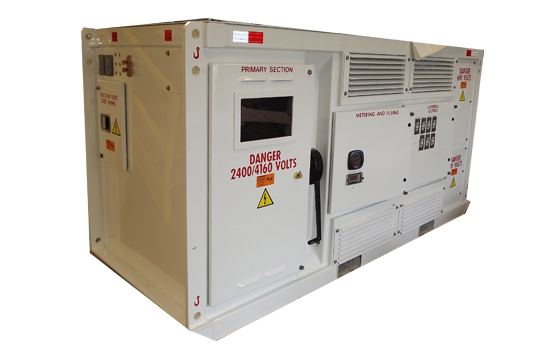

Single Substation

750 KVA 15KV/5KV

Dimensions: 60” W x  60”H x 110” L

Weight: 10,500 lbs

Features:

  • Primary fused loadbreak 600A 15KV, stored energy, shunt tripable
  • Lightning arrestors 18KV MCOV
  • Primary fuses 45mm DIN
  • Mind duty transformer, dual  voltage primary
  • Taps 2x above, 2x below nominal
  • Full digital metering amps/volts
  • Secondary Surge Protection
  • Digital temperature readout
  • Customer selection of GF/GC modules, C/W fascia indicators
  • Neutral ground resistor and detection module
  • 15KVA distribution transformer complete with 12cct or 16cct panel 120VAC
  • 2x 15A GFCI receptacles on exterior
  • All teck inputs holes for 120V/240V pre-drilled and tapped
  • Exterior air filters for easy maintenance
  • Fork lift capability built into frame
  • 600V secondary Eaton PL-4 800A c/w with main breaker and 4x KD3400F, 2x FD frame breakers
  • Prewired for future breakers

Options:

  • Top hats for primary and secondary
  • IR Viewing windows
  • Firetrace fire suppression system

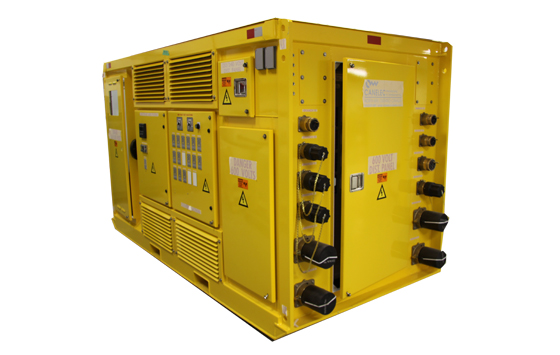

Single Substation

1 MVA 15KV/5KV

Dimensions: 144”L x 72” H x 60” D

Weight: 13,300 lbs

Features:

  • Primary fused loadbreak 600A 15KV, stored energy, shunt tripable
  • Lightning arrestors 18KV MCOV
  • Primary fuses 45mm DIN
  • Mind duty transformer, dual  voltage primary
  • Taps 2x above, 2x below nominal
  • Full digital metering amps/volts
  • Secondary Surge Protection
  • Digital temperature readout
  • Customer selection of GF/GC modules, C/W fascia indicators
  • Neutral ground resistor and detection module
  • 15KVA distribution transformer complete with 12cct or 16cct panel 120VAC
  • 2x 15A GFCI receptacles on exterior
  • All teck inputs holes for 120V/240V pre-drilled, tapped and plugged
  • Exterior air filters for easy maintenance
  • Fork lift capability built into frame
  • 600V secondary Eaton PL-4 1200A c/w with main breaker and 4x KD3400F, 2x FD frames, Bus kilts for 4x KD frame
  • Prewired for future breakers

Options:

  • Top hats for primary and secondary
  • IR Viewing windows
  • Firetrace fire suppression system

• Custom Substations to meet dimensional requirements of shaft handling.
• 24 hour call out.
• Custom panels for all surface and underground requirements.
